TSI SidePak AM510 Personal Aerosol Monitor

Pine Item #51353

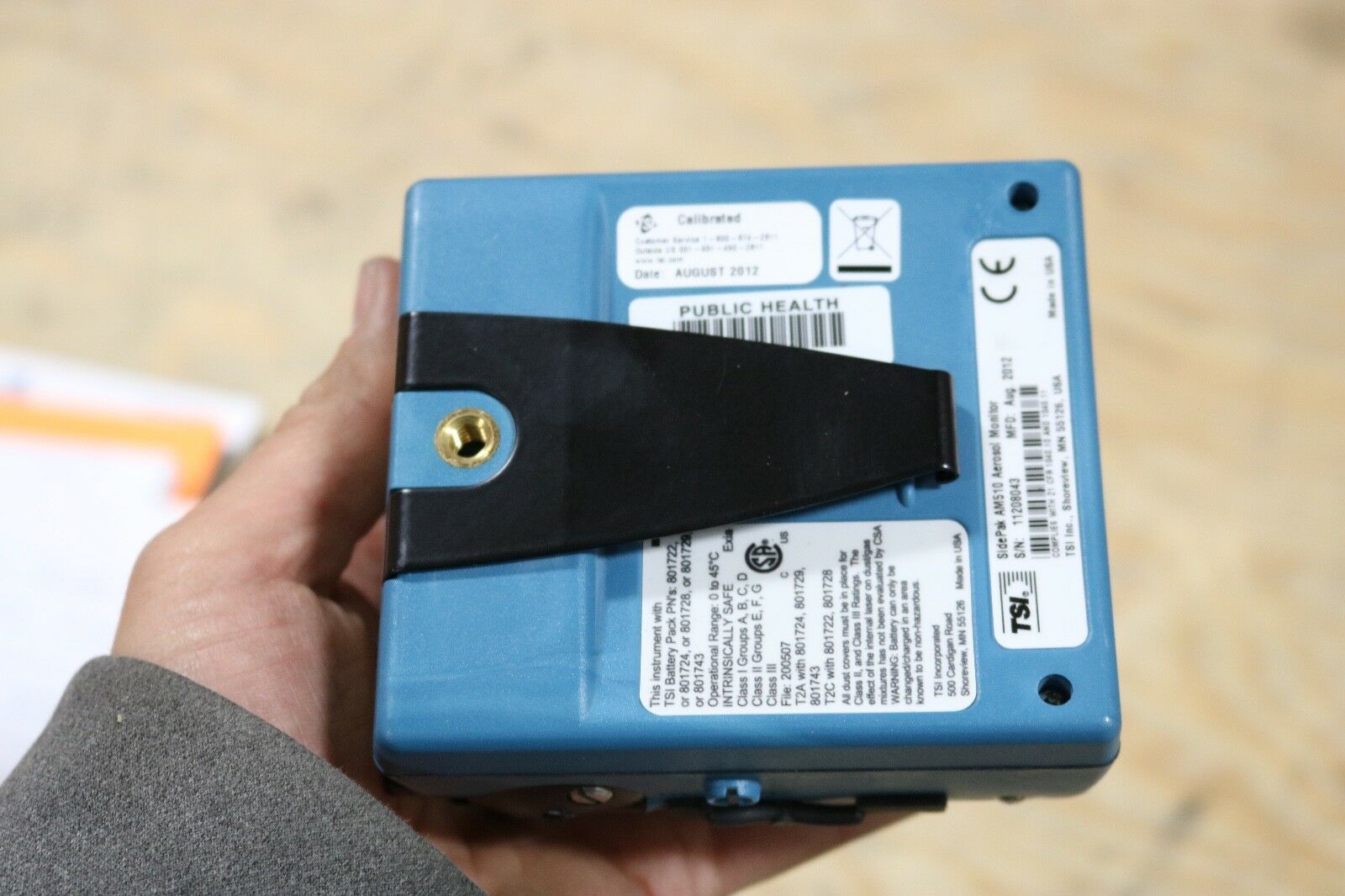

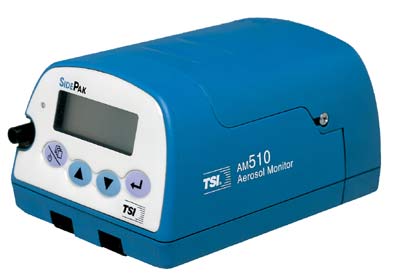

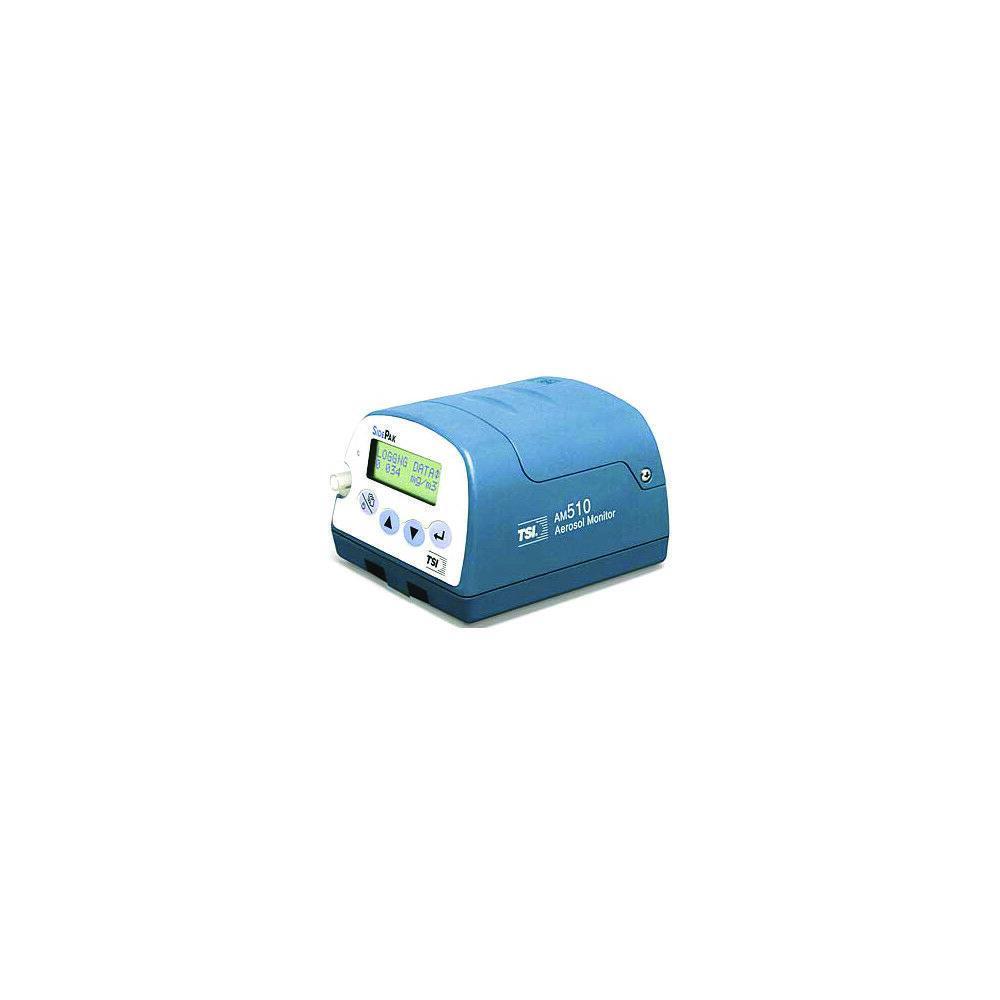

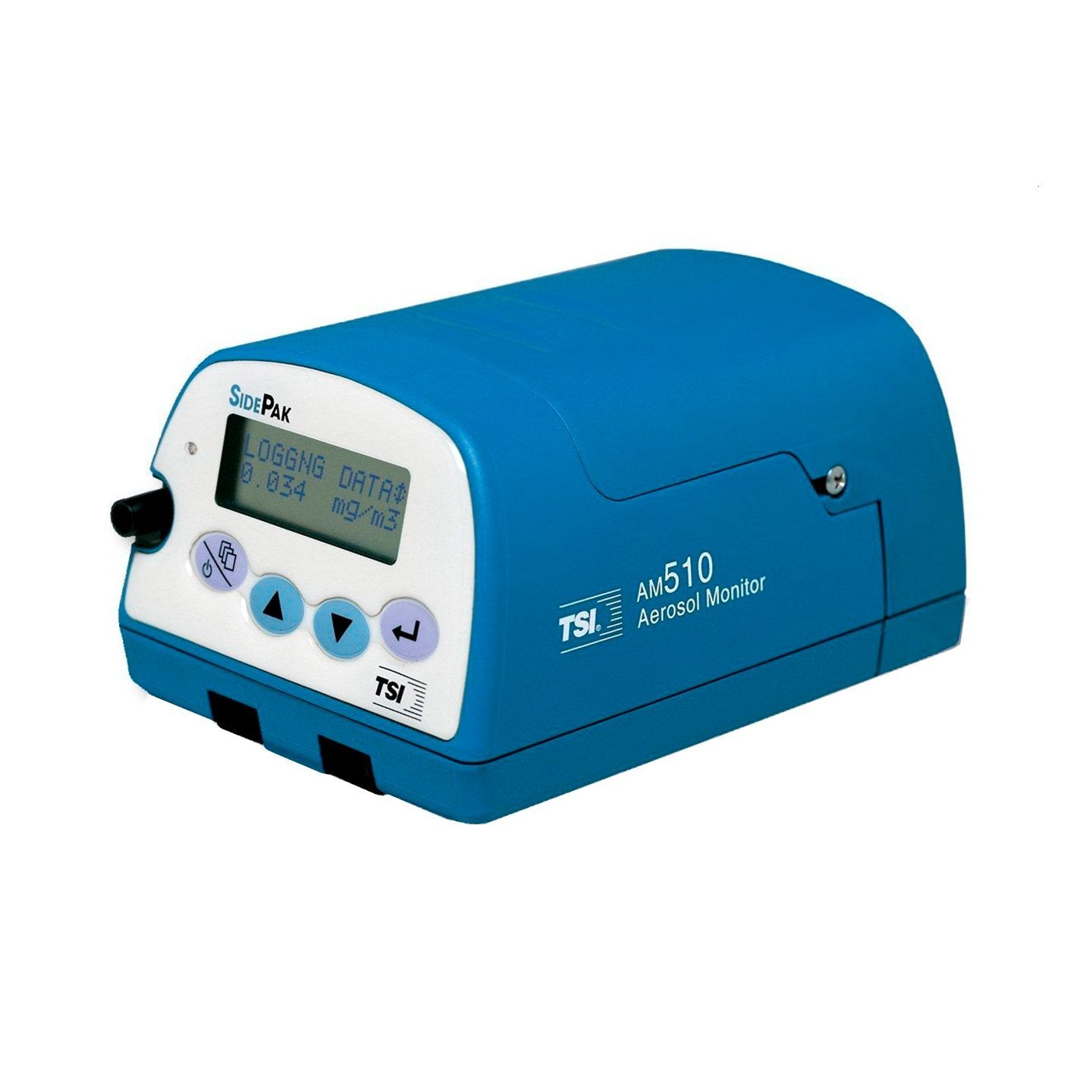

The SIDEPAK™ Personal Aerosol Monitor AM510 is a rugged, lightweight, belt mounted laser photometer, weighing as little as 16 ounces. It is compact and quiet, minimizing interference and worker discomfort. The built-in sampling pump lets you attach a wide variety of size-selective inlet conditioners for worker breathing zone or area measurements with a respirable cyclone or one of the three integrated impactors. The AM510 comes with TSI's Smart Battery Management System™, which includes long-running NiMH or alkaline battery packs and provides precise run time information in minutes remaining.

The AM510 personal aerosol monitor's easy-to-read display shows your data in both real-time aerosol mass concentration and eight-hour time-weighted average (TWA). With its convenient data logging and long battery life, the monitor is also ideal for extended sampling. Easy-to-use TRAKPRO™ Data Analysis Software lets you pre-program sampling events and create effective graphs and reports. Available in single- and three-unit kits.


Built-in impactors let you choose 1.0 2.5 or 10-micron cut off

Convenient threaded tripod socket accomodates area sampling

Display shows real-time concentrations (mg/ml) and on the fly TWA as you data log

Easy-to-read LCD display

Easy-to-understand user interface with only four keys

Intergrated pump allows use of size-selective areosol inlet conditioners

Lockable keypad prevents tampering while sampling

Rugged lightweight

Small lightweight and quiet to maximize worker acceptance

User-adjustable sample flow rate







General Industy



Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote


Technical Specifications

Sensor Type90 ° light scattering
Flow Rate RangeUser-adjustable 0.7 to 1.8 literes/min (lpm)
TemperatureOperating Range: 0 to 50°C (32 to 120°F)
Time Constant (LCD Display) RangeUser-adjustable 1 to 60 seconds
Data logging - Data pointsApprox. 31000 (21 days logging once per minute)
Logging IntervalUser adjustable 1 second to 1 hour
Aerosol Concentration Range0.001 to 20 mg/m³
Display2 line x 12 character LCD
Tripod Socket¼ -20 female thread
DimensionsUS: 4.2 x 3.7 x 2.8 in. Metric: 106 x 92 x 70 mm
WeightUS: 16 oz. Metric: 0.46 kg
