Pearpoint

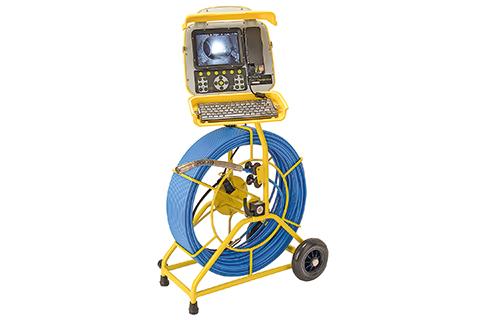

P341 Flexiprobe 200'

Pine Item #54804

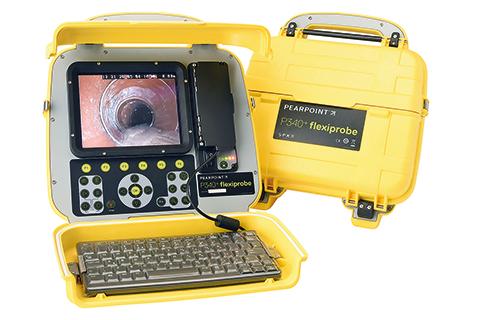

At the heart of the P340 flexiprobe system is the weatherproof P340+ flexiprobe controller, which displays color footage in digital quality on an ultra-bright 8" TFT screen. USB flash drive and Compact Flash storage options along with PC connectivity provide flexible data storage and comprehensive reporting capabilities.

The P340+ controller features an internal lithium-ion battery, providing convenient power for up to a full day’s typical usage, removing the inconvenience and set-up time of an external power lead.

P340 flexiprobe systems have been designed to deliver controllable and high quality video inspection for any situation, from residential work and commercial use through to specialist plant and municipal applications.

A choice of 3 sealed cameras can be mounted on a range of rods: from the ultra-flexible 100' (30m) Plumbers reel, designed for transiting tight bends, to the 500' (150m) P343 reel designed to push for long distances. A range of compatible sondes, skids, brushes and accessories completes the package.

Features:

In-built high capacity Lithium-Ion battery (P340+ controller)

One-touch recording to USB memory sticks and Compact Flash cards

Outstanding picture quality from toughened cameras

Super-flexible Plumbers system for residential and commercial plumbing

High quality digital video with digital pan and zoom

Inspection reports prepared on-site with integrated report writer

Weatherproof, robust and truly portable

Applications:

P341 Plumbers Reel

The second generation of extra-flexible P341 Plumbers reel offers high performance around tight bends and traps in short range surveys’ and is ideal for use in most waste water systems (from 1¼” / 32mm) found in commercial and residential properties.

A built-in flexi-sonde allows the user to pinpoint its location and depth without compromising maneuverability around tight corners – this can be located using a suitable pipe or cable locator, such as the RD7100DL.

The P342 rod offers a balanced compromise between bendability and stiffness, allowing good maneuverability and push performance.

A built-in flexi-sonde allows the user to pinpoint its location and depth without compromising bend performance – this can be located using a suitable pipe or cable locator, such as the RD7100DL.P341 Plumbers reels are offered in 2 different length: 100’ / 30m or 200’ / 60m.

P341 Reel

The P341 115’ / 35m is designed for small diameter pipes (from1 ¼” / 32mm) and for distance. The P341 pushrod has been engineered to offer the optimum stiffness to offer long range push whilst maintaining the offer the ability to go through bends.

Often used to go from smaller pipes into larger ones, the P341 reel can be fitted with either the 1” / 25mm or 2” /50mm cameras, and a 1” 512 or 640 flexisonde for maximum configurability.

P342 Reel

The P342 system is designed to deliver optimum performance in medium-diameter pipes starting from 4”/100mm. However, its compact and robust design allows the user to extend its use to smaller pipes (will fit in a 2”/50mm pipe).

The P342 rod offers a balanced compromise between bendability and stiffness, allowing good maneuverability and push performance.

A built-in flexi-sonde allows the user to pinpoint its location and depth without compromising bend performance – this can be located using a suitable pipe or cable locator, such as the RD7100DL+.The P342 reel is offered in 2 lengths: 200’ / 60m or 400’/120m.

P343 Reel

The P343 system is designed to deliver exceptional push performance when used to inspect main drains and pipes, characterized by relatively straight route.

In the right conditions, the P343 reel can push the camera up to its full length of 492’/150m.

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

P340+ Controller
Power requirements:P340+ controller input
External power supply (PSU) input
P340+ automotive battery charger input
12-24VDC, 40W
100-240VAC, 50-60Hz, 1.2A
10-30VDC, 4.0A
Battery capacity:14.8V, 6.6Ah (98Wh)
Battery run-time:Up to 1 day’s typical usage, 7hrs view only /4hrs continuous recording*
Display:8" Industrial TFT
Storage:High speed Compact Flash Card or USB flash drive
Connectivity:USB, Analog video in/out (PAL/NTSC), Analog audio in/out
Environmental protectionP340+ controller

External PSU and charger
Optional External PSU
IP55 (covers closed)
IP53 (covers open and socket panel closed)
IP54 rated for indoor use
IP67 for outdoor use
Temperature:Storage:
Operating:
Charging:
-4°F to 176°F /-20°C to +80°C
14°F to 122°F /-10°C to 50°C
14°F to 104°F /-10°C to 40°C
Dimensions:14" x 14" x 8" (360 x 360 x 200mm)
Weight:13.5lbs/6.2kg
*May vary according to ambient conditions, accessories attached, recording time and other factors
Rods and ReelsP341 PlumbersP341 MiniP342 ReelsP343 Reel
Dimensions:22.4" x 16.9" x 10.6"
570 x 430 x 269mm
22.4" x 16.9" x 10.6"
570 x 430 x 269mm
" 33.5" x 29.5" x 16.5"
850 x 750 x 420mm
32.0" x 46.0" x 18.7"
813 x 1168 x 475mm
Weight:21lbs/9.4 kg
25lbs/11.2kg
24lbs/11kg40lbs/18.2 kg
55lbs/25kg
81.6lbs/37kg
Construction:Powder-coated tubular steel frame
Rod:100'/30m
200'/60m
115'/35m200'/60m
400'/120m
500'/150m
Cameras1"/25mm camera1 ¼"/32mm self-levelling camera2"/50mm self-levelling camera
Dimensions:1" x 1.52" / 25.4 x 38.7mm1.23" x 2.6" / 31.24 x 66mmm 1.89" x 2.87" / 48 x 72.8mm
Weight:0.1lbs / 0.06kg0.4lbs / 0.18kg0.8lbs / 0.36kg
Construction:Stainless steel /
polycarbonate
Stainless steel/sapphire glass / polycarbonate
Power1.8W1.3W3.8W
Environmental:IP68 to 330' (100m) / 11barIP68 to 230' (70m) / 7barIP68 to 330' (100m) / 11bar
Temperature:Storage: -4°F to 176°F / -20°C to +80°C
Operating: 14°F to 122°F / -10°C to +50°C
Focus:Manually adjustableFixedManually adjustable
Focal Range:10mm to ∞Fixed10mm to ∞
Lighting:Ultra bright white LEDs
LED luminance≥ 75lm≥ 150lm≥ 208lm
Active pixels (HxV):656 x 492 NTSC
768 x 576 PAL
640 x 480 (NTSC)
640 x 576 (PAL)
768 x 492 NTSC
765 x 582 PAL
Horizontal resolution:≥ 460TVL≥ 420TVL≥ 460TVL
