Rausch minCam360 Pan & Tilt Push Camera

Pine Item #56015

Application Range from 3″ up to 16″ (with All Optional Accessories)

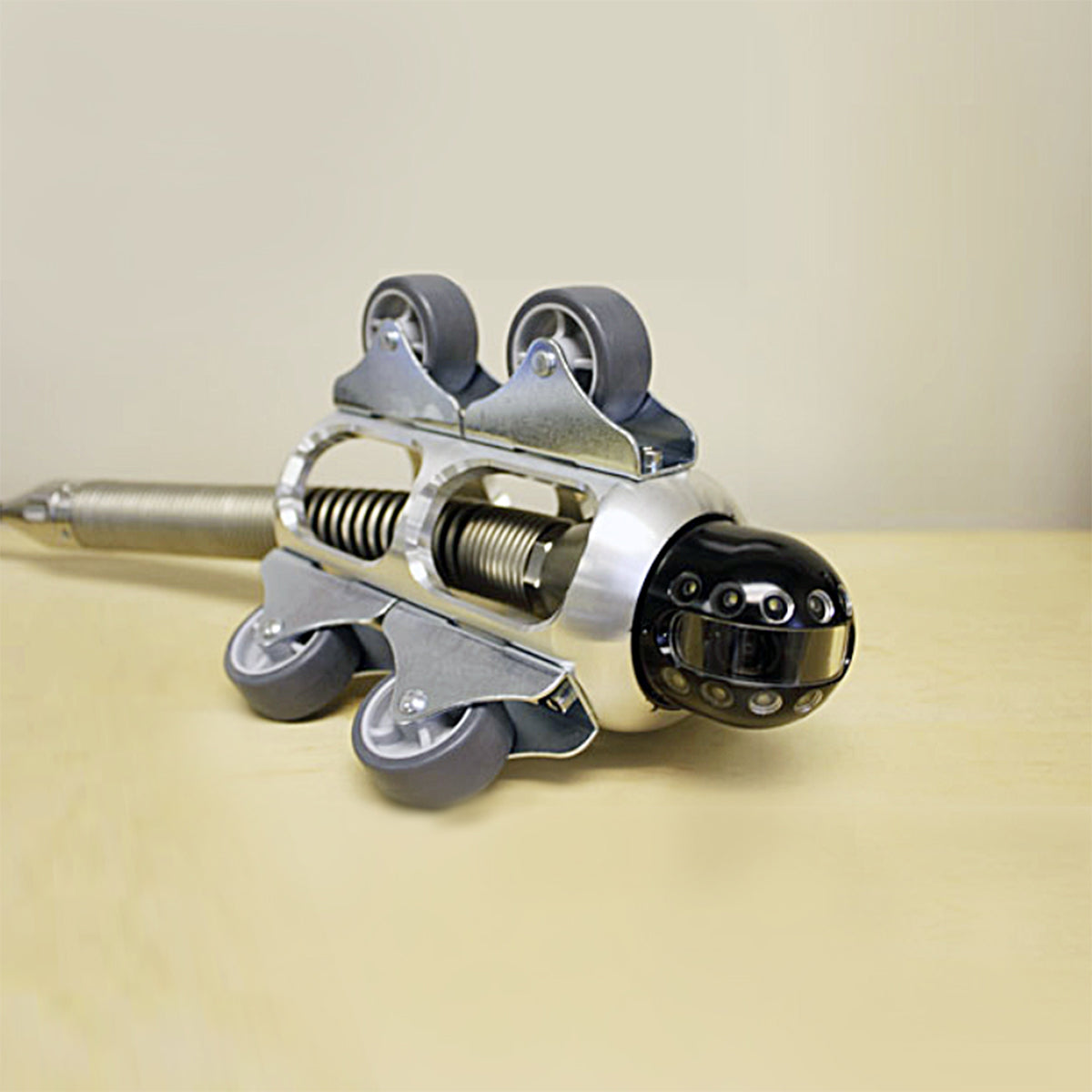

The minCam360 pan & tilt push camera can push through 4” 90° P-Traps and inspect pipe diameters up to 16” with the optional large roller upgrade. It features digital zoom as well as innovative self-adjusting “smart” LED lights. Includes tri-band 512 Hz, 33 kHz, 640 Hz sonde.

Features:

8.4” TFT LCD sunlight readable, records video, audio & photo

Pelican® Storm Case heavy-duty housing

SD card reader, max. 32 GB for approx. 20 hours of video

MPEG-4 Video (.avi, 800×600); Pictures (.bmp 640×480)

Touch button control for recording photos, videos, and file management

Push-to-Talk (PTT) switch for voice note control

Integrated Qwerty keyboard text generator in Pelican case

Applications:

Pipe inspections

Sewer inspections

Water & drain video pipe inspections

Well inspections

Service lines, drains, and empty conduits

Ideal for leak testing, rehabilitation, and pipe cleaning

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications
Length200 ft. (60m) of 9.2mm fiberglass push cable (up to 300 ft.)
IncludesIntegrated tri-band 512Hz/640Hz/33kHz sonde
Monitor FeatureElectronic on-screen distance counter

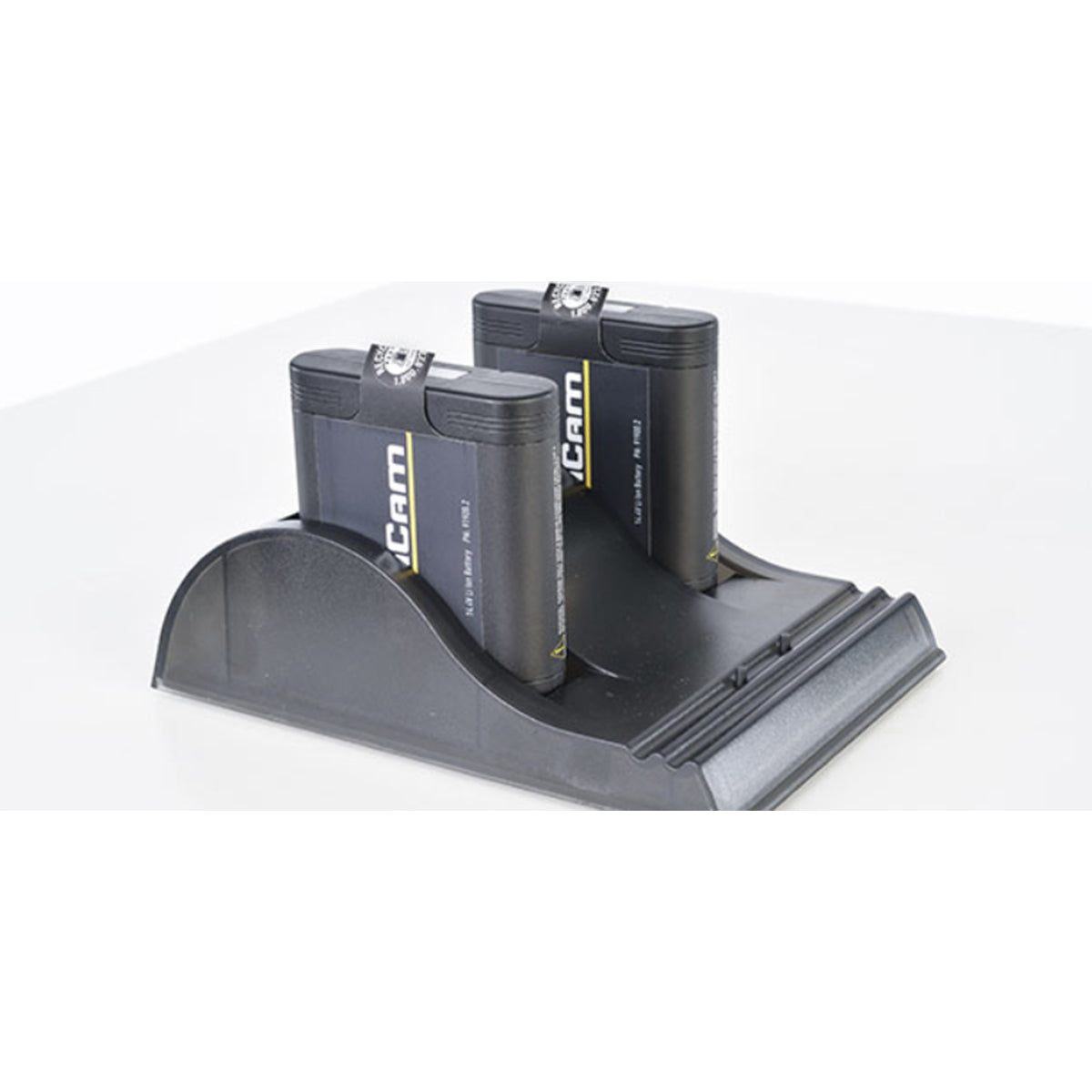

Batteries2 removable Lithium Ion batteries for 4 hours operation
Power Supply100 – 240V AC
MaterialLightweight stainless steel & carbon reel cage
Reel FeatureMechanical reel brake
Control UnitOn/off switch, light regulation, sonde frequency control, Preset camera macros, BNC video out

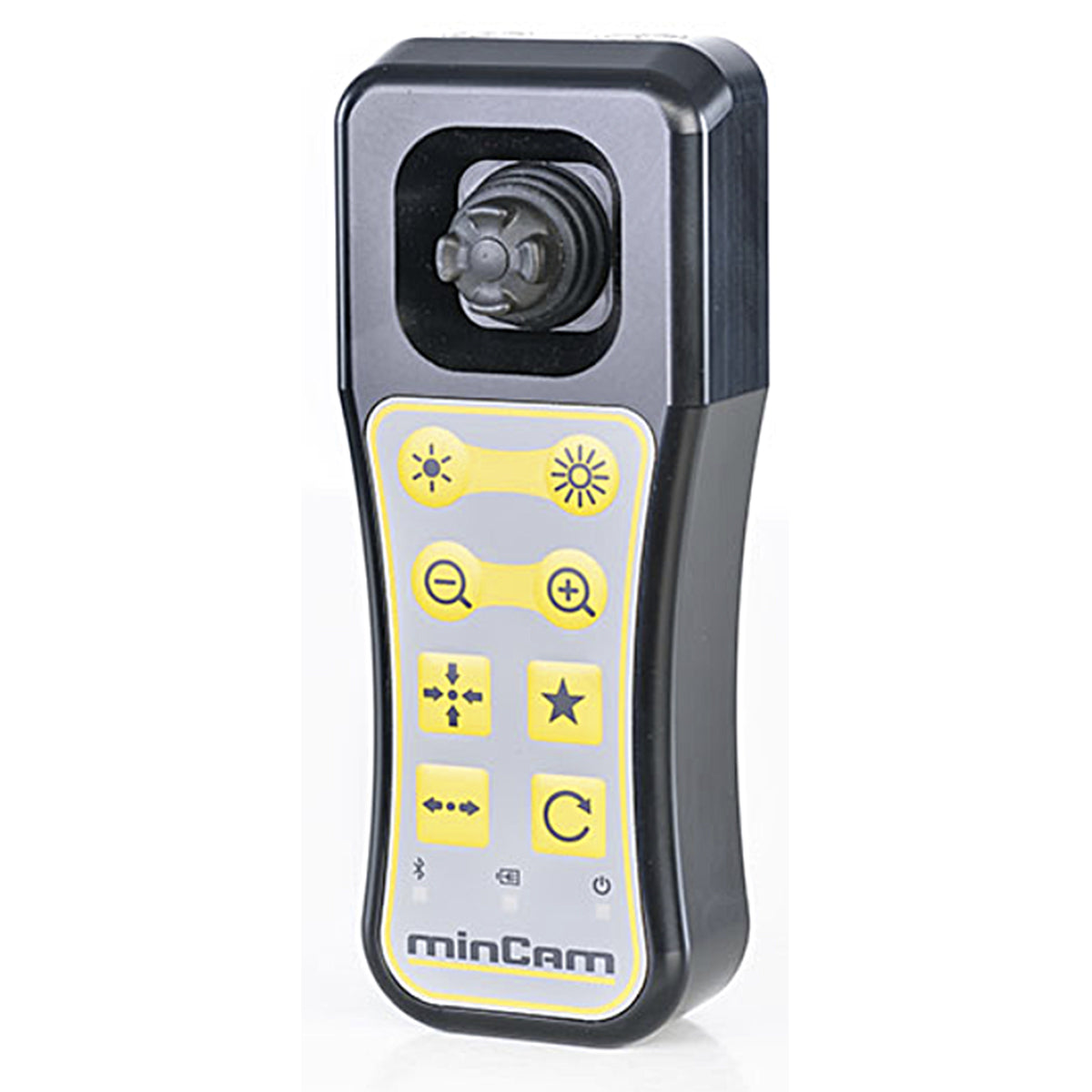

RemoteWireless remote control with joystick for pan & tilt, 4-step zoom control, light regulation, preset camera macros
Weight49 lbs.
Dimensions23” x 26” x 12” (L x H x W)
OptionalExternal battery charger.
