Polaris
PTZx Inspection Camera System
Pine Item #55510

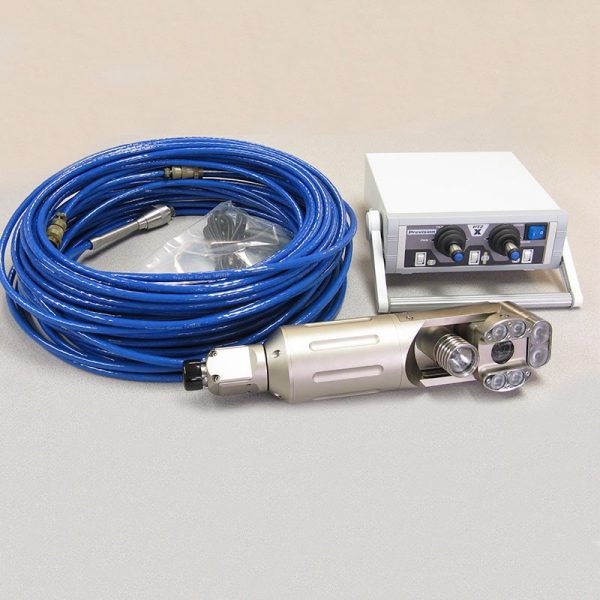

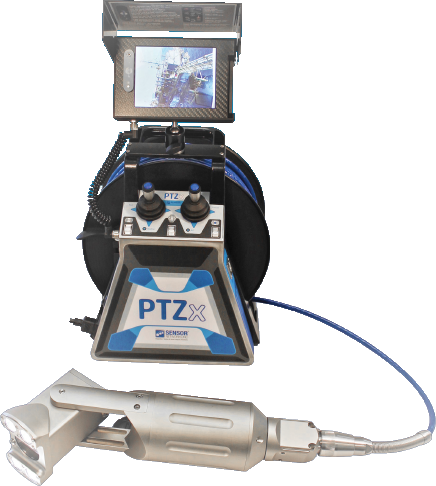

Portable inspection system loaded with features to inspect tanks, vessels, drums, and other large confined spaces and piping. State-of-the-art white LED lighting provides over 1000 lumens of light along with add-on auxiliary lighting brightens the darkest of environments. Coupled with a low-lux, high-resolution CCD imager, zoom optics, continuous pan rotation and 270 ° of tilt, this sub-4" camera provides excellent quality images with which well-informed decisions can be made.
Features:
Super-bright white LED lighting
High-beam auxiliary spotlights
High-resolution low-lux color CCD imager
Intuitive joystick control with on-screen graphics
Continuous pan rotation with no limits
Flexi-base for straight or right angle cable connection
Lightweight cable drum with integral controller
Pressurize-able and purge-able
Applications:
Nuclear
Fossil
Hydro
Pharmaceutical
Chemical
Food
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals, Data Sheets & Software
| Camera Lighting: | 0-1200 lumens (source) |
| Auxiliary Lighting: | 1000 lumens (2X 500 lm each) |
| Image Brightness: | Adjustable |
| Focus: | Auto/Manual (10cm - 8) |
| Pan: | 360° @ 0-5rpm |
| Tilt: | 270° @ 0-5rpm |
| Cable Length: | 150' (45 m) |
| Pressure Rating: | 66psi (4.5bar) |
| Weight: | 26 lbs. (11.8kg) |
| Power: | ~100-240V 50/60Hz 4A |
| Dimensions: | 13.2 x 12.2 x 16.0" (330 x 310 x 406 mm) |
| Construction: | Nickel-plated Aluminum with Stainless Steel |
