BAQ GmbH
BAQ alphaDUR mini II UCI Hardness Tester
Pine Item #53344

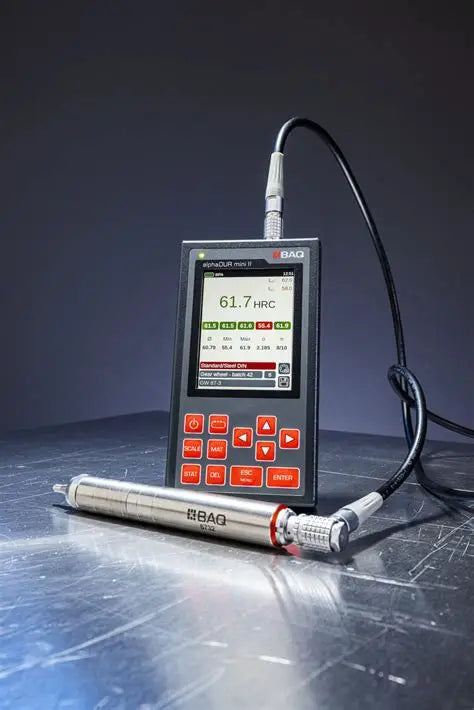

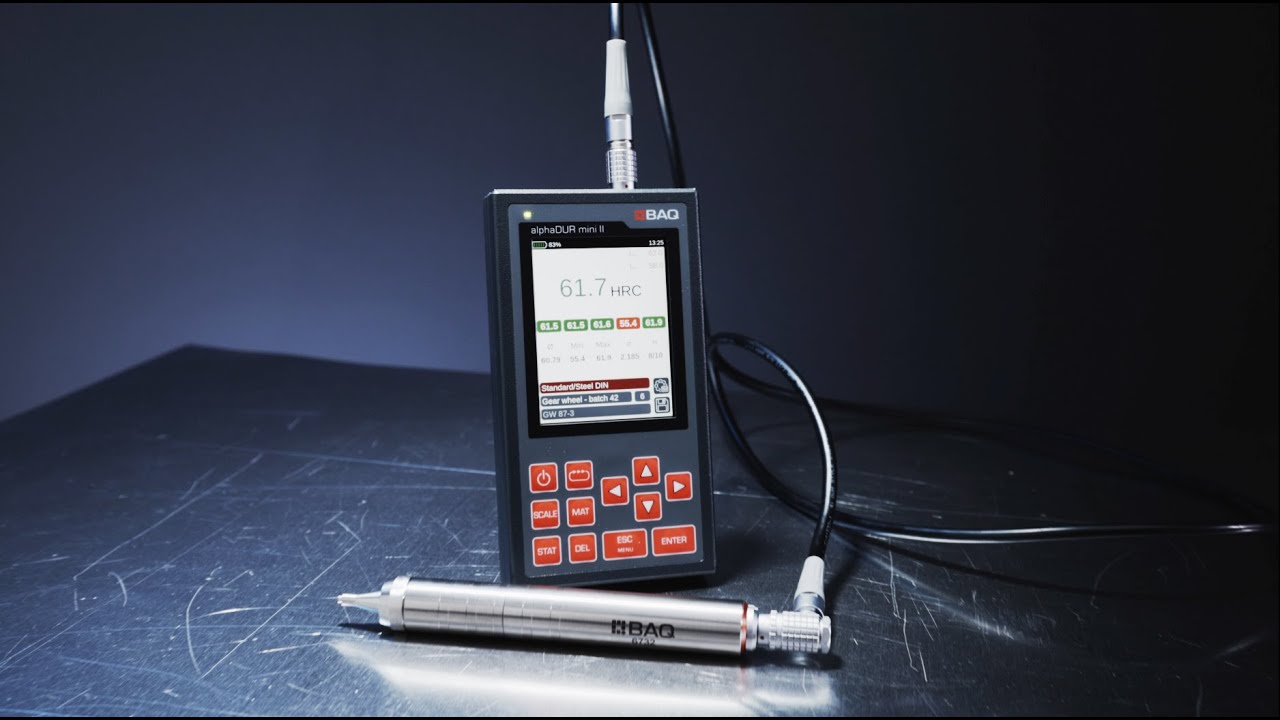

The BAQ alphaDUR mini II is a portable UCI hardness tester designed for fast, accurate field and production hardness testing. It uses the Ultrasonic Contact Impedance method and is built for applications where conventional stationary hardness testing is impractical, including machine parts, weld seams, coatings, hardened parts, incoming goods inspection, and production quality control.
The alphaDUR mini II is the fourth generation of the alphaDUR series. It features a robust metal housing, large 3.5-inch color display, built-in lithium-ion battery, USB-C data transfer, Bluetooth 5.0 BLE, extensive storage, and statistical functions. The unit supports hardness testing in HV, HB, HRC, HRB, HRA, HRD, HRE, HRF, HR45N, HK, and tensile strength, with conversions according to EN ISO 18265 and ASTM E140. BAQ lists the measuring method according to DIN 50159 and ASTM A1038.
The unit is especially well suited for NDT, fabrication, quality inspection, weld verification, heat-treatment validation, and maintenance teams that need a compact hardness tester capable of repeatable measurements at difficult-to-access locations and at any orientation. BAQ’s manual confirms that UCI measurement is quick, simple, and suited for mobile applications because the hardness value is determined directly during the indentation process without microscopic optical analysis.
Product Capabilities
- Portable UCI hardness testing for field and shop-floor use
- Testing method according to DIN 50159 and ASTM A1038
- Hardness conversion according to EN ISO 18265 and ASTM E140
- Measuring range from 10 to ~3000 HV
- Test loads available by probe: 3, 10, 20, 30, 49, or 98 N
- Supports HV, HB, HRC, HRB, HRA, HRD, HRE, HRF, HR45N, HK, and tensile strength
- Measurements can be performed independent of direction
- Material calibrations can be saved in the device
- Suitable primarily for metals, with glass, ceramic, and plastic possible when comparison calibration is performed
- Large color LCD display with graphical measurement visibility
- USB-C charging and data transfer
- Bluetooth 5.0 BLE
- Direct protocol printout with optional mini thermal printer
- Data transfer to USB flash drive and PC
- Built-in 6800 mAh lithium-ion battery with ~10 hours operating time
- Extensive onboard memory for more than 1,000,000 measurements
- Compatible with probe supports, high-precision stands, probe handles, special SL probes, and certified UCI hardness test blocks
Industries of Use
NDT and Inspection Services: Portable hardness verification for field inspection, repair verification, and customer QA programs.
Welding and Fabrication: Weld seam, heat-affected zone, and post-weld hardness checks.
Manufacturing Quality Control: Production hardness testing of machined, hardened, coated, and treated components.
Aerospace and Defense: Component-level hardness verification where portability and controlled documentation matter.
Power Generation: Hardness checks on maintenance components, welds, pipe sections, and outage-related inspection scopes.
Oil, Gas, and Petrochemical: Field hardness testing on piping, welds, pressure components, and maintenance repair areas.
Automotive and Heavy Equipment: Hardness testing of gears, shafts, hardened parts, and machined components.
Heat Treatment and Coatings: Verification of hardened parts, surface-treated components, and coating-related applications.
Features:
Portable UCI Hardness Testing: The alphaDUR mini II uses the Ultrasonic Contact Impedance method for fast mobile hardness testing without requiring microscopic optical evaluation.
Broad Hardness Scale Coverage: The instrument supports Vickers, Brinell, Rockwell, Super Rockwell, Knoop, and tensile strength values, giving inspection teams flexibility across multiple programs.
Multiple Probe Load Options: UCI probes are available in 3, 10, 20, 30, 49, and 98 N test loads, allowing the user to match the probe to the sample surface and application.
Large Color Display: The 3.5-inch TFT color display provides clear visibility of hardness values, limits, history, statistics, materials, and measurement parameters.
Robust Metal Housing: The alphaDUR mini II is built with a rugged metal casing for field and production environments.
High-Capacity Internal Storage: The instrument includes 2 GB RAM and 8 GB eMMC flash memory, supporting more than 1,000,000 measurements.
Modern Data Transfer: USB-C, Bluetooth 5.0 BLE, USB flash drive export, PC transfer, and optional mini printer support efficient documentation workflows.
Long Battery Runtime: The built-in 6800 mAh lithium-ion battery provides approximately 10 hours of operating time.
Application-Specific Accessories: Probe supports, probe handles, high-precision stands, special SL probes, carrying bags, mini printers, and certified UCI hardness test blocks are available.
Made in Germany: The alphaDUR mini II is manufactured by BAQ GmbH in Germany for professional hardness testing and quality assurance applications.
Applications:
Incoming Goods Inspection: Verify material hardness during receiving inspection before parts, stock, or components enter production or service.
Production Hardness Testing: Perform fast hardness checks on manufactured components directly on the shop floor.
Weld Seam Inspection: Measure weld seams and adjacent material to support weld quality programs and acceptance criteria.
Heat-Affected Zone Testing: Inspect heat-affected zones where hardness changes may indicate heat-treatment, welding, or metallurgical concerns.
Machine Part Verification: Test gears, shafts, machined components, and precision parts where portable access is required.
Coating and Surface-Treated Components: Evaluate plated parts, surface treatments, and case-hardened components using the appropriate UCI probe and calibration.
Maintenance and Repair Verification: Validate repaired or replaced components in the field without removing them for laboratory testing.
Pipe and Pressure Component Inspection: Perform hardness verification on piping, pressure components, and field-fabricated assemblies during maintenance and inspection programs.
Difficult-to-Access Locations: Utilize specialized probes and accessories to measure hardness in confined or hard-to-reach areas where conventional bench testers cannot be used.
Quality Documentation: Capture, store, transfer, and print hardness results for inspection reports, quality records, and customer documentation packages.
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals, Data Sheets & Software
Videos
| Specification | Detail |
|---|---|
| Manufacturer | BAQ GmbH |
| Model | alphaDUR mini II |
| Pine Item Number | 53344 |
| Product Type | Portable UCI hardness tester |
| Measuring Method | UCI, Ultrasonic Contact Impedance |
| Applicable Standards | DIN 50159 and ASTM A1038 |
| Hardness Conversion | According to EN ISO 18265 and ASTM E140 |
| Measuring Range | 10 to approximately 3000 HV |
| Hardness Scales | HV, HB, HRC, HRB, HRA, HRD, HRE, HRF, HR45N, HK, tensile strength N/mm² |
| Test Loads | 3, 10, 20, 30, 49, or 98 N, depending on UCI probe |
| Associated Vickers Loads | HV0.3, HV1, HV2, HV3, HV5, HV10 |
| Testing Materials | Preferably metals. Glass, ceramics, and plastics may be tested when comparative calibration measurements are performed. |
| Minimum Steel Thickness | Approximately 5 mm, depending on sample geometry |
| Uncertainty of Measurement | < 2% |
| Display | 3.5-inch TFT LCD color display, 640 x 480 pixels |
| Memory | 2 GB RAM, 8 GB eMMC flash memory, more than 1,000,000 measurements |
| Interfaces | USB-C, CAN bus probe connection, Bluetooth 5.0 BLE |
| Data Transfer | USB flash drive, PC transfer, Bluetooth, and direct protocol printout with optional mini thermal printer |
| Battery | Built-in lithium-ion battery, 6800 mAh |
| Operating Time | Approximately 10 hours |
| Operating Temperature | 0°C to 50°C per BAQ product page and brochure. Manual specification lists -15°C to 60°C operation. |
| Storage Temperature | -20°C to 60°C per BAQ product page and brochure. Manual specification lists -20°C to 70°C storage. |
| Humidity | 90% maximum, non-condensing |
| Device Dimensions | 154 x 84 x 23 mm, H x W x D |
| Device Weight | 430 g |
| Standard Probe Dimensions | 19.5 mm diameter, 175 mm length |
| Standard Probe Weight | 190 g |

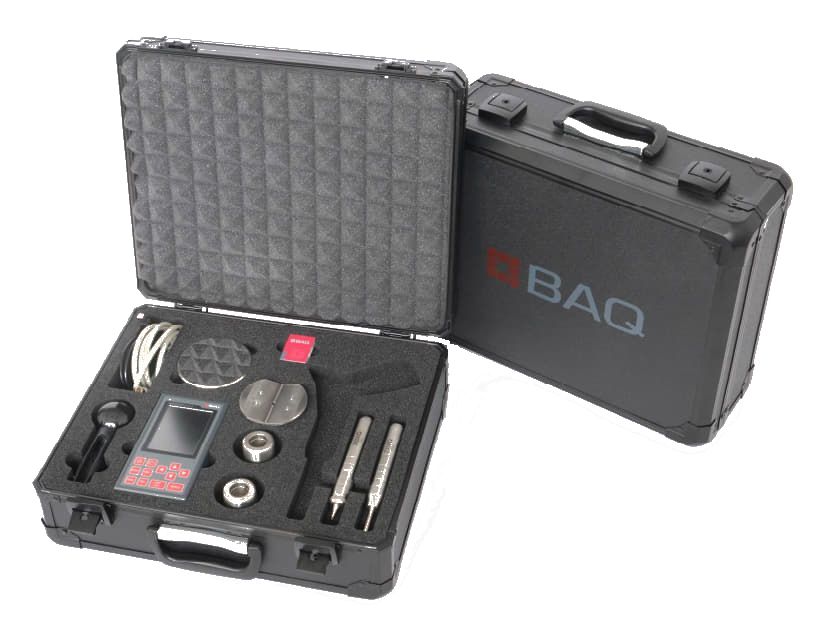

| Standard Scope of Supply | Basic device with built-in battery, UCI probe with connection cable, USB cable, charging adapter, carrying case, BAQ certificate for UCI probes, and USB flash drive with manuals. |
| Optional Accessories | Special SL and SL-L probes, probe support for flat and curved surfaces, high-precision stand, probe handle, carrying bag, mini printer, and certified UCI hardness test blocks. |
| Country of Manufacture | Germany |
