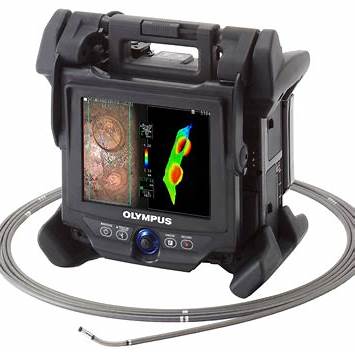

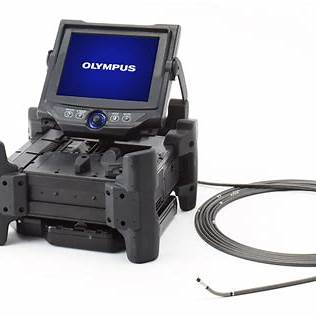

Olympus IPLEX NX Video Borescope (6mm x 7.5m)
The Olympus IPLEX NX (6mm x 7.5m) Borescope is an advanced industrial videoscope designed for high-precision inspections in challenging environments. This state-of-the-art borescope delivers unmatched image quality, powerful illumination, and superior maneuverability, making it an ideal tool for industries that demand detailed visual inspections of hard-to-reach areas. With a robust and portable design, the IPLEX NX ensures durability in rigorous field applications, offering exceptional performance in aerospace, power generation, oil & gas, and manufacturing sectors.
Olympus IPLEX NX Product Capabilities:
- Ultra-Clear Imaging – Features a CMOS sensor and PulsarPic™ image processing to deliver high-resolution, true-color images, essential for detecting fine defects.
- Powerful LED Illumination – Equipped with an advanced LED light source that enhances visibility in dark or complex spaces.
- Interchangeable Stereo Measurement – Offers precise 3D stereo measurement capabilities for crack sizing, depth measurement, and flaw assessment.
- Durable & Waterproof Design – Designed to withstand harsh environments, with an IP65-rated main unit and an IP55-rated monitor.
- Versatile Articulation – Uses TrueFeel™ scope articulation for precise control and improved maneuverability.
- Large, High-Resolution Touchscreen – Features a 1,000 cd/m², 8.4-inch touchscreen display for clear visibility in bright environments.
- Multiple Probe Diameters & Lengths – Available with 4mm, 6mm, and 8mm probe diameters and various lengths to accommodate different inspection needs.
- Easy Data Management – Supports USB and SD card storage, with on-screen annotation for effective reporting.
Industries of Use
- Aerospace – Turbine, engine, and airframe inspections.
- Oil & Gas – Pipeline, refinery, and storage tank inspections.
- Automotive & Manufacturing – Quality control and component analysis.
- Power Generation – Boiler, turbine, and heat exchanger inspections.
- Infrastructure & Construction – Structural assessments of bridges and tunnels.
- Defense & Security – Inspections of critical defense equipment.
Features:
HD Imaging & Illumination – High-resolution CCD camera with laser diode illumination for clear visuals in low-light conditions.
3D Defect Measurement – Provides accurate 3D modeling for better defect analysis.
Wide-Angle Stereo Measurement – Four times the inspection area compared to previous models.
Multi-Spot Ranging – Measures distance to multiple points in real time.
Durable & Portable – MIL-STD-810G compliant for rugged environments.
Intuitive Touchscreen – 8.4-inch LCD for easy operation
Applications:
Aircraft Engine Inspections – Detects cracks, corrosion, and foreign object damage.
Pipeline Integrity – Identifies corrosion, weld defects, and blockages.
Turbine Blade & Boiler Inspections – Ensures operational efficiency by detecting wear and damage.
Automotive & Weld Quality Inspections – Verifies component integrity in manufacturing and maintenance.
Heat Exchangers & Industrial Equipment – Detects fouling, corrosion, and leaks.
Specifications
| Insertion Tube Diameter: | 4.0 mm or 6.0 mm |
| Insertion Tube Length: | 3.5 m, 5.0 m, or 7.5 m |
| Articulation: | 130° (4.0 mm) or 150° (6.0 mm) in four directions |
| Light Source: | High-intensity laser diode |
| Display: | 8.4-inch touchscreen LCD |
| Operating Temperature: | -25°C to 100°C (insertion tube); -21°C to 49°C (other parts) |
| Weight: | Approx. 5.4 kg |
| Durability: | MIL-STD-810G certified |
