VanEssen Micro-Diver

Pine Item #51933

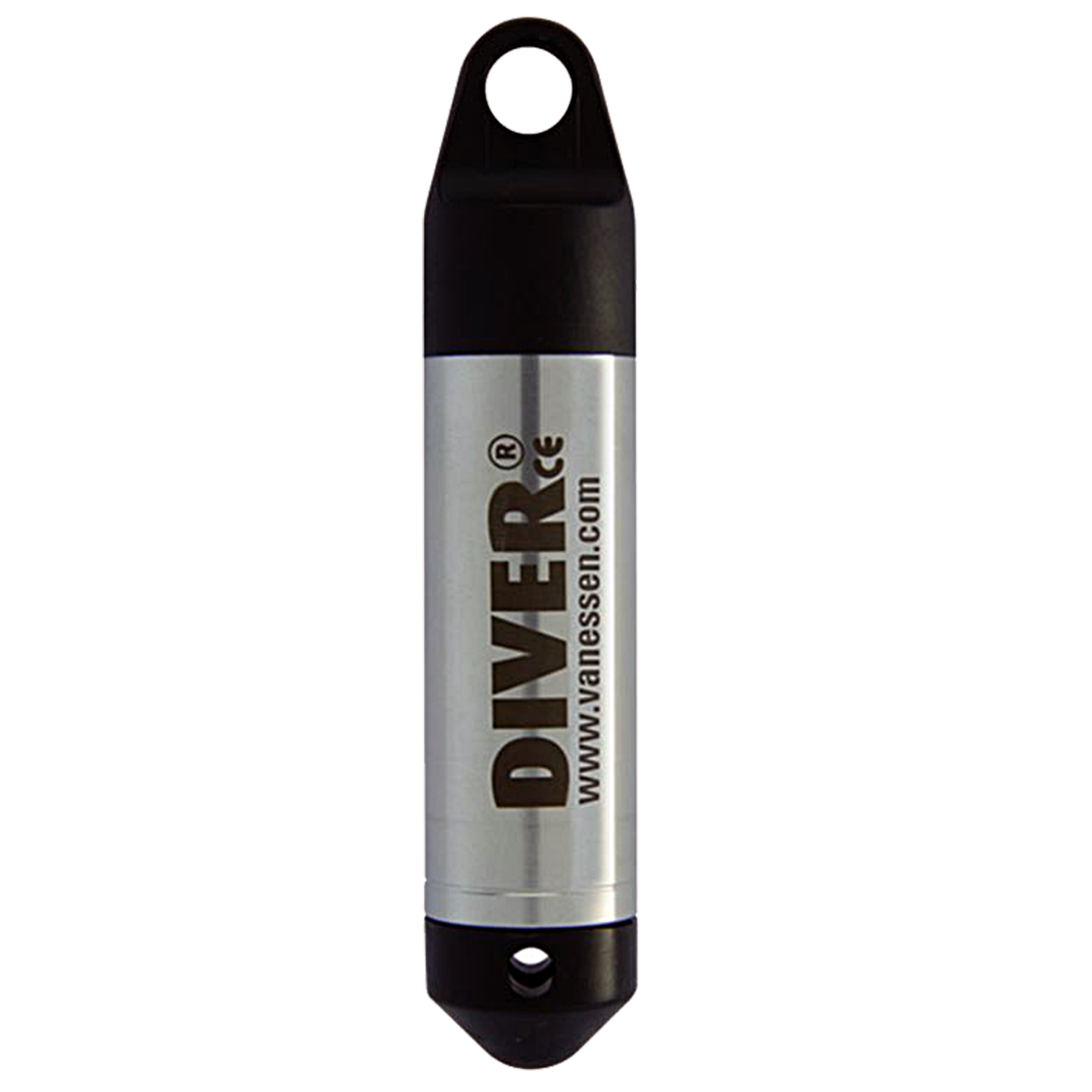

Measuring only 88 mm (3.46″) in length and 18 mm (0.71″) in diameter, the Micro-Diver is Van Essen’s smallest Diver. The Micro-Diver® is a submersible datalogger for long-term, uninterrupted, real-time water level monitoring using a pressure sensor when submerged at a fixed level under the water surface. The pressure sensor measures the equivalent hydrostatic pressure of the water above the sensor diaphragm to calculate the total water depth. The Diver autonomously measures pressure and temperature and records them in its internal memory. The Diver is ideal for ground and surface water level applications.

The Micro-Diver is specifically designed for monitoring wells or drive-points too small to accommodate larger dataloggers. In addition to its compact size, the Micro-Diver’s memory capacity can store up to 48,000 measurements (date/time, pressure, and temperature) – almost one measurement every ten minutes for an entire year.

The Micro-Diver has the following sample methods: fixed-length intervals, event dependent, averaging and pumping test.

The Micro-Diver is available in the following pressure ranges: 10 m, 20 m, 50 m, and 100 m.


Pre-programmed and user defined pumping tests

30-Point Pressure Factory Calibration

48000 records of time stamp pressure and temperature

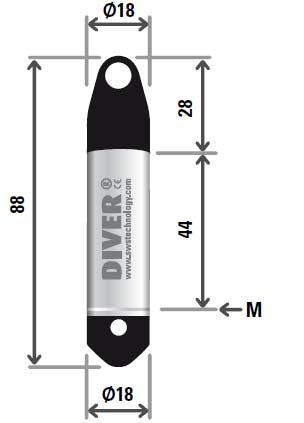

Compact size: Ø 18 mm - length 88 mm


Engineering and construction: Pump tests

Aquifer characterization: Pump and slug tests

Shallow water monitoring: Drive-points

Long-term groundwater monitoring: Small diameters wells
